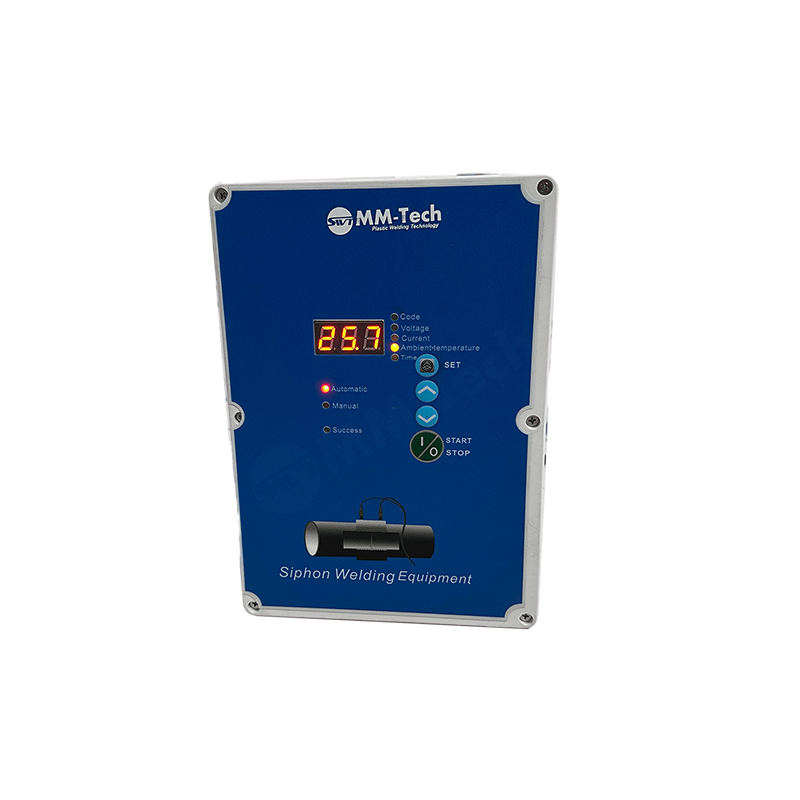

Siphon Electrofusion Machine SIPHON 160 & SIPHON 315
The SIPHON 160 & SIPHON 315 is a welder that uses electrically-induced melting for jointing polyethylene (PE) drain pipes and/or fittings by means of electro-weldable polyethylene (PE) couplings. It can handle four different types of welding, depending on the type of coupling involved. The coupling is recognized by the machine by means of the cable, which is selected by the operator from among the four different-color options available.
| MODEL | SIPHON 160 | SIPHON 315 |
| WELDING RANGE | 32-160MM | 32-315MM |
| OVERALL WEIGHT | 5.5kg | 6kg |
| OVERALL SIZE | 280*260*200 mm | 280*260*200 mm |
| POWER SUPPLY | 230V, 50-60Hz | 230V, 50-60Hz |
| MAX POWER ABSORBED | 2470W | 2470W |
| AMBIENT TEMPERATURE PROBE | Electronic | Electronic |
| WATER AND DUST PROTECTION GRADE | IP55 | IP55 |
| STANDARD ACCESSORIES | Trevira carrier bag, welding extension cable, 4 welding cables with plug, power cable, use and maintenance handbook enclosure | |
