SWT-B315/90A HDPE Pipe Welding Machine With Automatic“jumping” heating element & milling cutter;
Suitable for butt welding of plastic pipes and fittings made of PE,PP, and PVDF in worksite or workshop.
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.
Ranges of application: PE,PP and PVDF
Working voltage:220V ±10%,50Hz
Total power: 3.95 kW, including:planning tool:1.1 kW, heating plate:2.1 kW, hydraulic unit motor: 0.75 kW

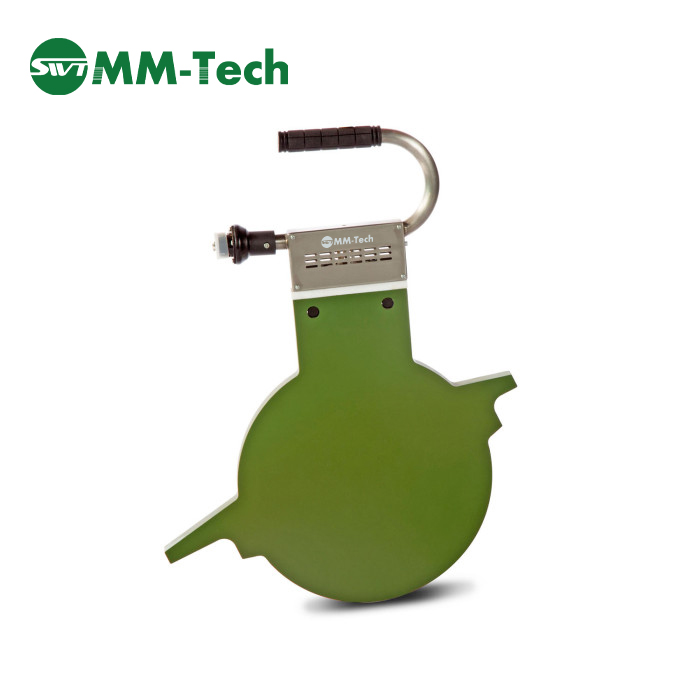

PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.
Environment temperature: -10° - 45°

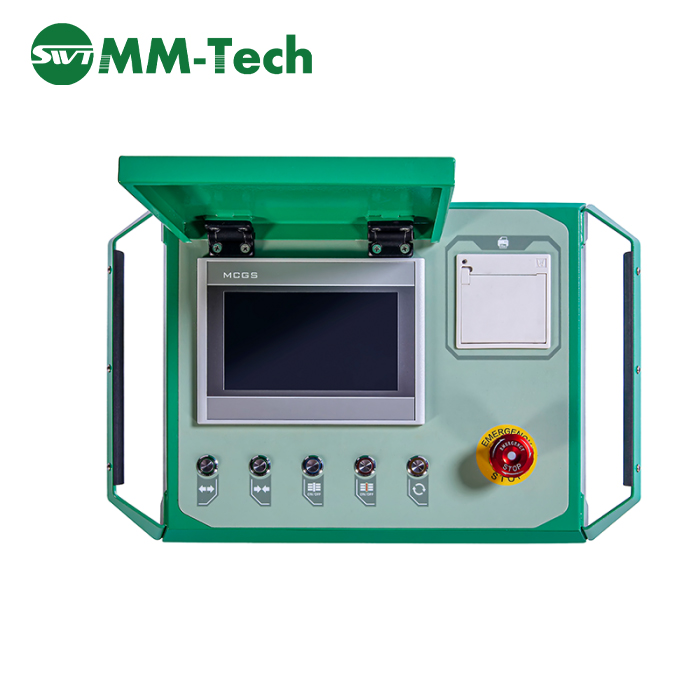

Electronic count-down timer for heating and cooling time.

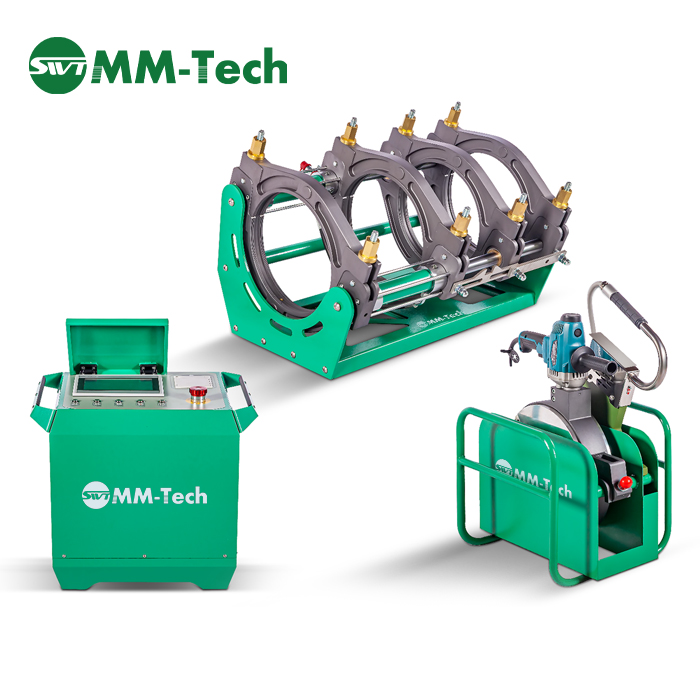

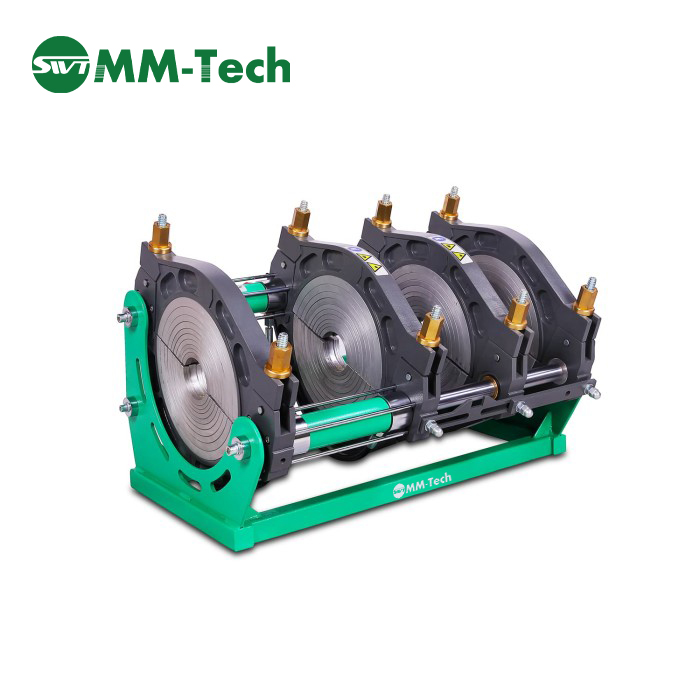

Whole machine consists of basic frame, heating plate, planning tool, hydraulic unit
and support (for planning tool & heating plate)
Wheeled trolley available;

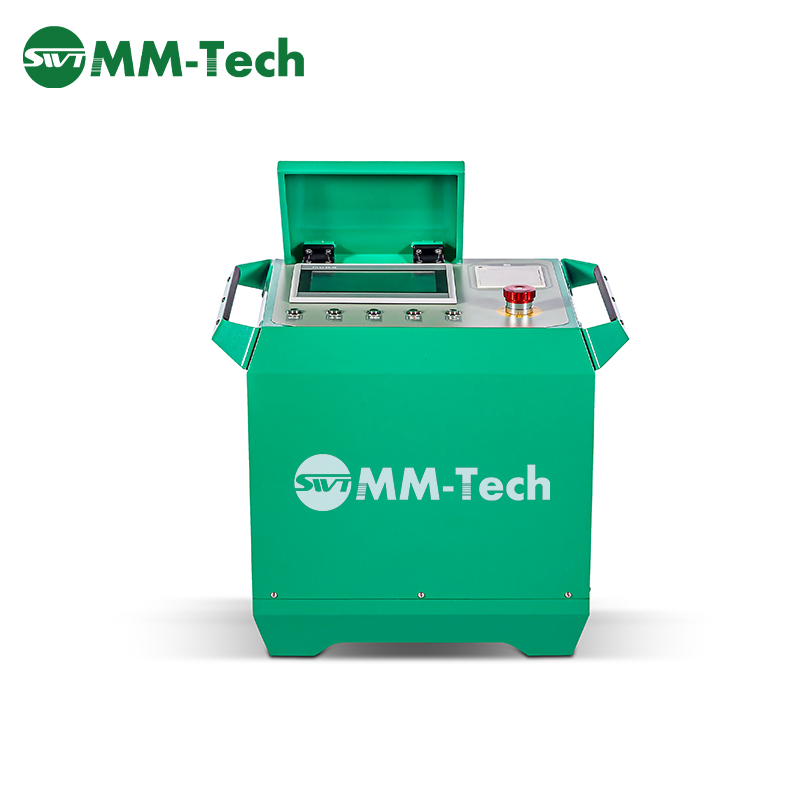

Closed Hydraulic unit systems.
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are free to provide.
CNC Pe Pipe Butt Fusion Welding Machine SWT-B315/90A
