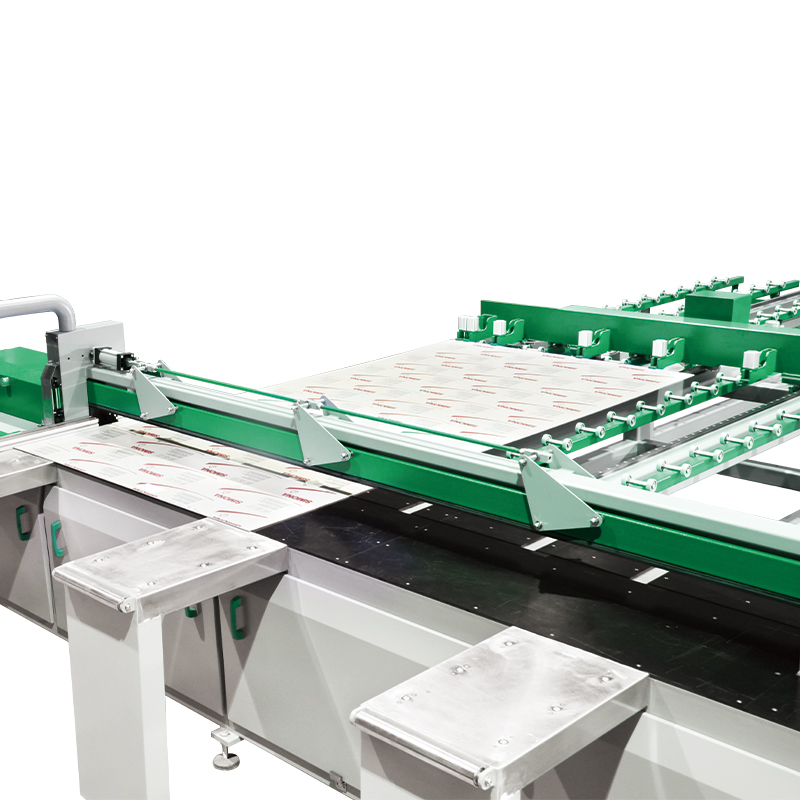

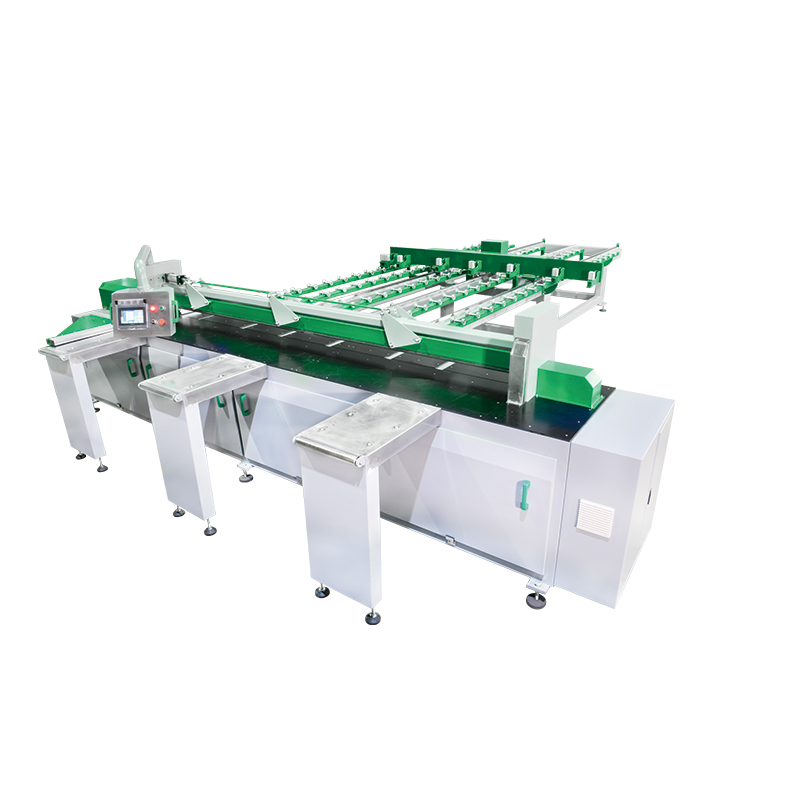

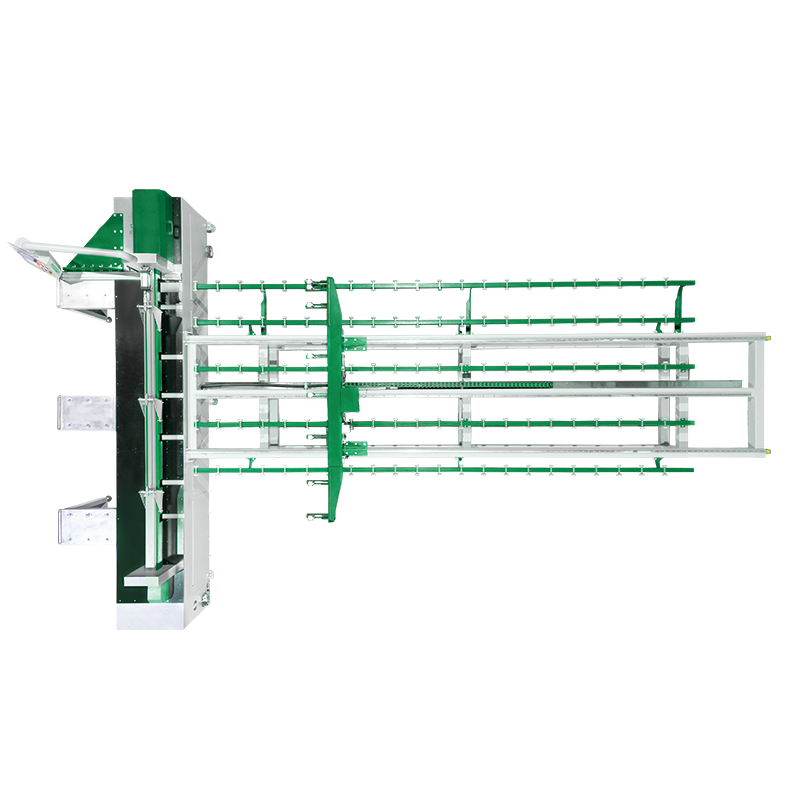

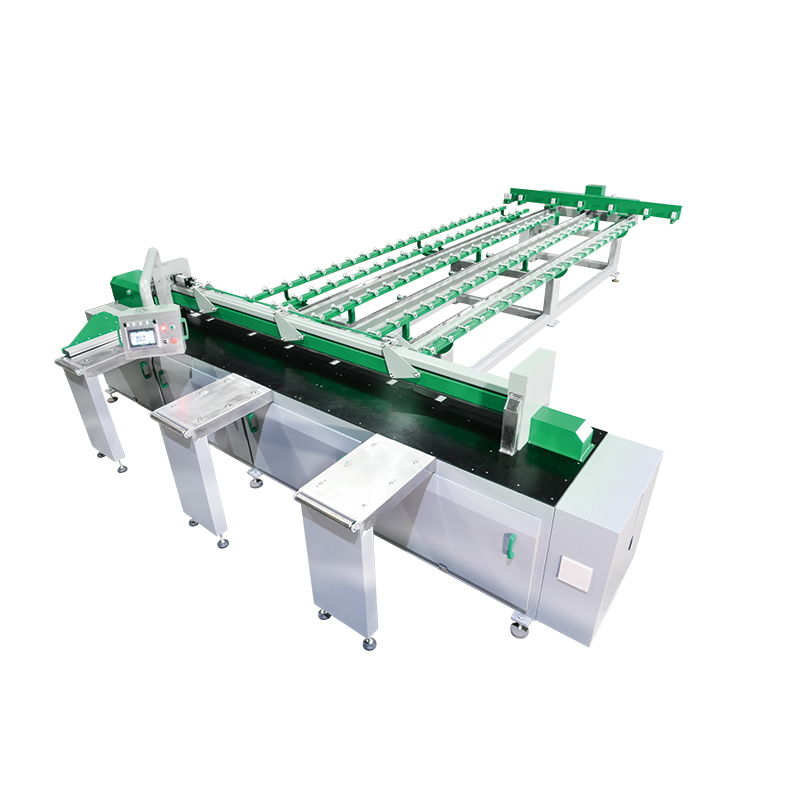

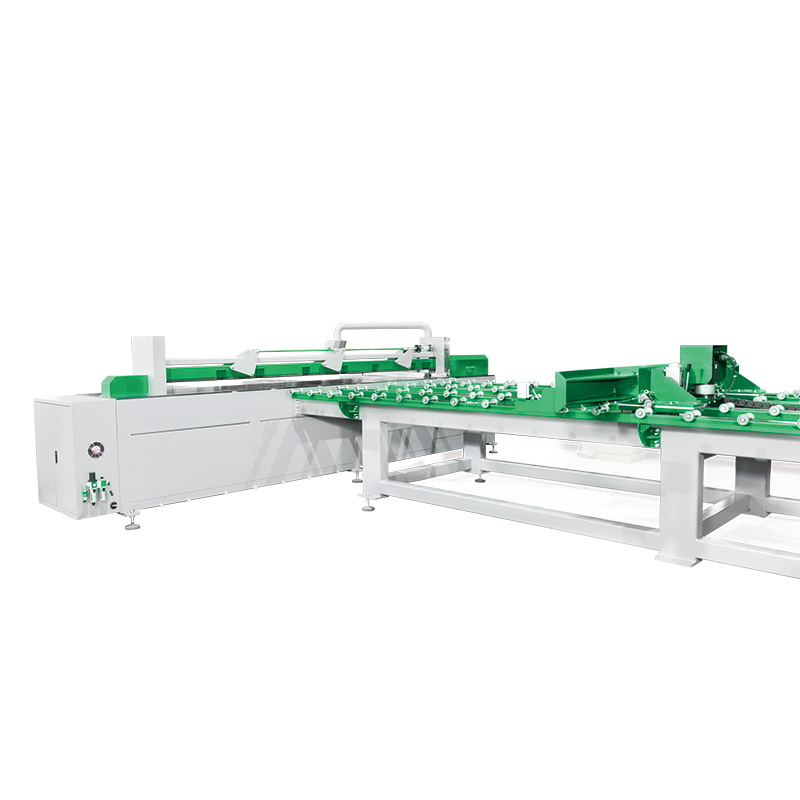

SWT-XL3000 CNC Cutting Machine For Thermoplastic Sheet
SWT series Butt Fusion Welding Machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.
SWT-PH series Sheet Butt Fusion Welding Machine
SWT-ZW series Bending Welding Machine
SWT-PZ series All in one bending butt fusion welding machine

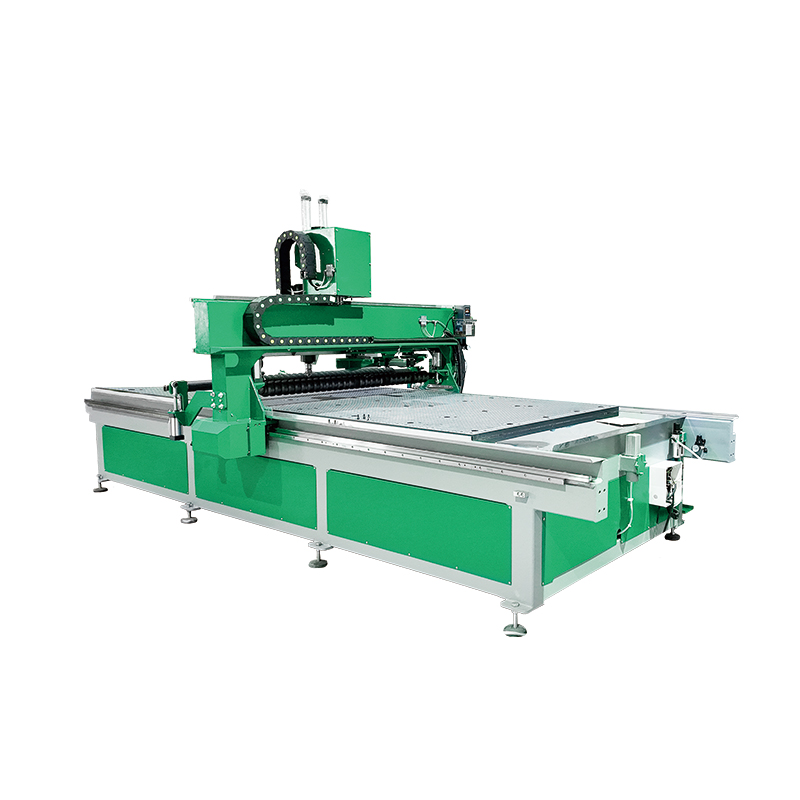

SWT-YF series Engraving machine
SWT-XL series Cutting Saw
| SPECIFICATIONS | |
| CNC Feeding sheet length | 3050mm |
| Cutting Length | 3050mm |
| Cutting Thickness | 60mm |
| Main Motor Power | 5.5HP |
| Saw size | 305*25.4*100T |
| Spindle speed | 4000rpm |
| Driver method | variable frequency drive (VFD) |
| CNC feeding Type | Delta servo |
| Transmission method | Precise helical gear |
| Positioning accuracy | ±0.1mm |
| Slideway on frame | AirTAC |
| Pressing method | pneumatic |
| Dust dusting method | 3KW bag-type dust collector |
| Controller | Mitsubishi |
| Running Slideway | AirTAC |
| Rated voltage | 380V/50Hz AC power |
| Processing materials | thermoplastic sheet |
| Dimensions | 5250mm*5500*1650mm |
| N.W | 1950kg |
SWT-XL3000 CNC Cutting Machine For Thermoplastic Sheet
