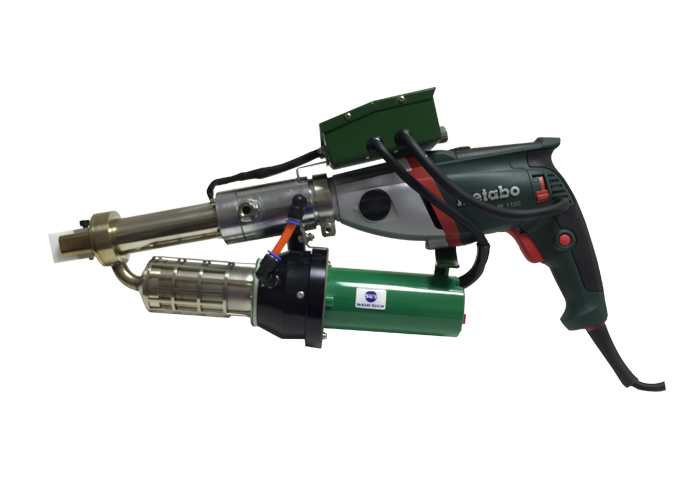

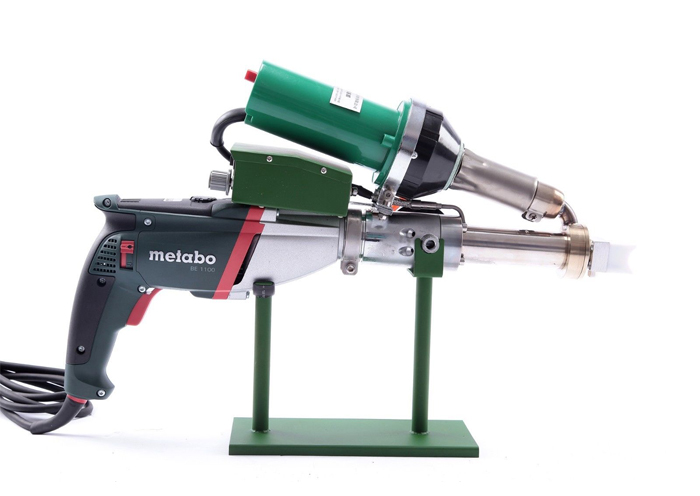

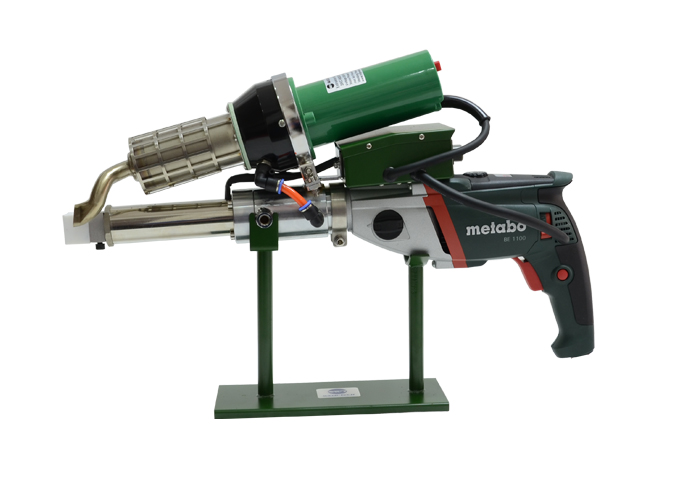

New Style Granules Extrusion Welder
This granules extrusion welder is the first plastic granules extrusion welder in china
that has functions of independent heating systems,digital display controller,
360-degree rotation welding head,motor cold start protection,
which is applicable to welding PE,PP,PVC,PVDF and other hot melt materials.
1.Double Heating System:
Granules feed heating system and hot air heating system make sure the best welding quality.
2.Digital Display Controller:
Microcomputer chip controller makes easy operation
3.360-degree Rotation Welding Head:
the 360-degree rotating hot air welding nozzle can be applied to different needs.
4.Motor Cold Start Protection:
Extruding motor will shut down automatically if it has not reached the preset melting temperature,
which avoids loss caused by operating mistakes.
5.Plastic Granules Feeding:
Plastic granules feeding barrel makes extruding volume largely and being operated easily.
SWT-NS Model extrusion welder is a new type of hot air welder which imported foreign advanced technology, well-developed.
It has reached or exceeded the same type products of oversea, filling the domestic blank. The major components (hot air gun and drive motor) are made of imported brand-name accessories, stable performance, long service life; They are two independent systems,one is for preheating raw material,another is for welding rod extrusion. Reasonable structure, convenient operation, continuous welding, high working efficiency, powerful extrusion, to make the weld strength is greatly improved,It is the ideal product for a variety of thermoplastic welding processing.
This product is with two major components,preheating raw material’s hot air part and welding rod’s extrusion part.Hot air part with adjustable temperature controller to heat automatically,and extrusion part with independent thermostatic heating control system to send hot air independently, It is easy to adjust extrusion speed and use screw extruding for powerful extrusion pressure. Using 220v power supply uniformly to weld plastic sheets,tube and other thermoplastic products,expecially for both ends of large diameter hollow wall pipe,producing pipe and repairing pipe and so on.
Available welding materials: thermoplastic HDPE, PP, PVDF, especially PE .Do not apply in a conductive plastic (PE-EL),
or cause the machine to produce a conductive short-circuit.
Replacement of the different welding nozzle, can be applied:
Plastic containers’s welding, stitching, etc.;
The large diameter plastic pipe’spipe welding, repairing, splicing, sealing, etc.;
The thicker plastic membranes, geomembrane splicing, patching and so on.
Imported hot air welding torch and imported driven system, high temperature, big torque, long service life, stable performance.
Light weight, easy to handle and available to operation at different angles.
Big extrusion volume can be welded more than 10mm welding seam.
Different welding shoes can be applied to different types of welding.
It is used in the tank and pipe and is comply with Part 4 of the DVS standard (Germany Welding Association).
International warranty 24months.
Any parts broken or does not work under normal operating,we are free to provide.
SWT-NS620 Granules Exrusion Welder
