  • Radius Bandsaw SWT-500/315A

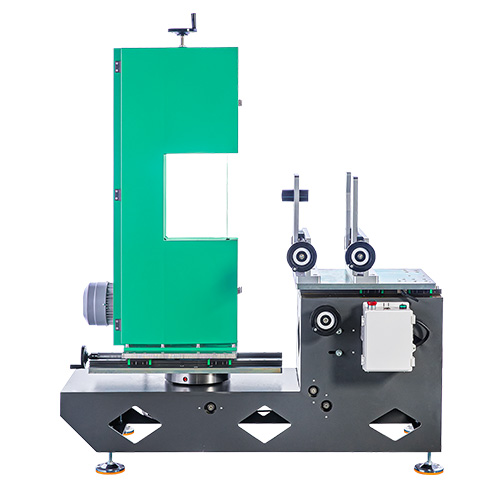

Radius Bandsaw SWT-500/315A

Cutting range: 315mm~63mm

Ranges of application: PE,PP and PVDF

Range of arched radius: R80~400

Cutting angle error: ≤1°

Working voltage: ~380V ±10%,50Hz

Total power:3KW,including: drive motor:3KW

Working voltage:~415V ±10%,50Hz

Total power: 3 KW, including:drive motor: 3KW

Max. line speed:350m/min

Environment temperature:-10°~45°


  • Techincal Data

Features

The excellent cutting enables an arc to be welded directly without any further processing.

The radius bandsaw offers an accurate cutting shape.

It is designed according to 98/37EC and 73/23/EEC standards.

Applications

The radius bandsaw is used for making arched pipe end according to the main pipe

surface while fabricating a PE reducing tee in the workshop.

Technical Parameters of the Radius Bandsaw

Specification

Cutting range: 315mm~63mm

Ranges of application: PE,PP and PVDF

Range of arched radius: R80~400

Cutting angle error: ≤1°

Working voltage: ~380V ±10%,50Hz

Total power:3KW,including: drive motor:3KW

Working voltage:~415V ±10%,50Hz

Total power: 3 KW, including:drive motor: 3KW

Max. line speed:350m/min

Environment temperature:-10°~45°
