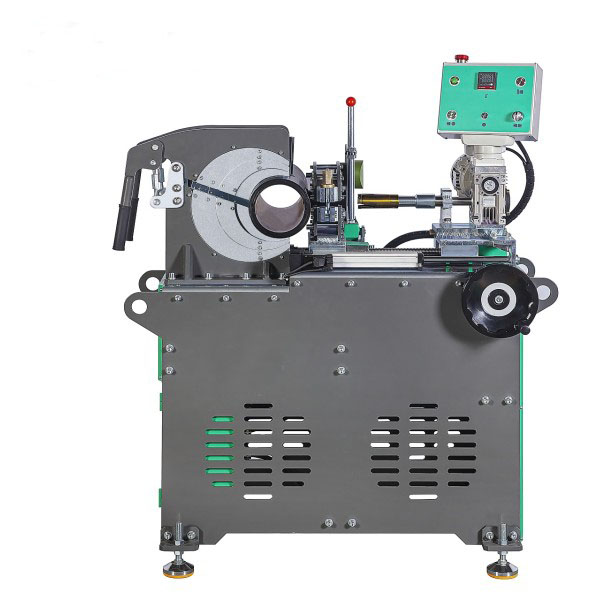

Saddle Fusion Welding Machine SWT-S450W

Main pipe max. dia.:630mm/800mm/1000mm/1200mm

Branch pipe max. dia.315mm/400mm/500mm/560mm

Ambient temperature:-5~45℃

Heating plant max. temp.:270℃

System pressure ranges:0-16Mpa

Working voltage:380V±10%, 50Hz

Heating plate power:8~12Kw

Hydraulic unit power:1.5Kw

Drill motor power:1.5~3Kw

Total power:11~16.5Kw

Weight:1900KG


  • Techincal Data

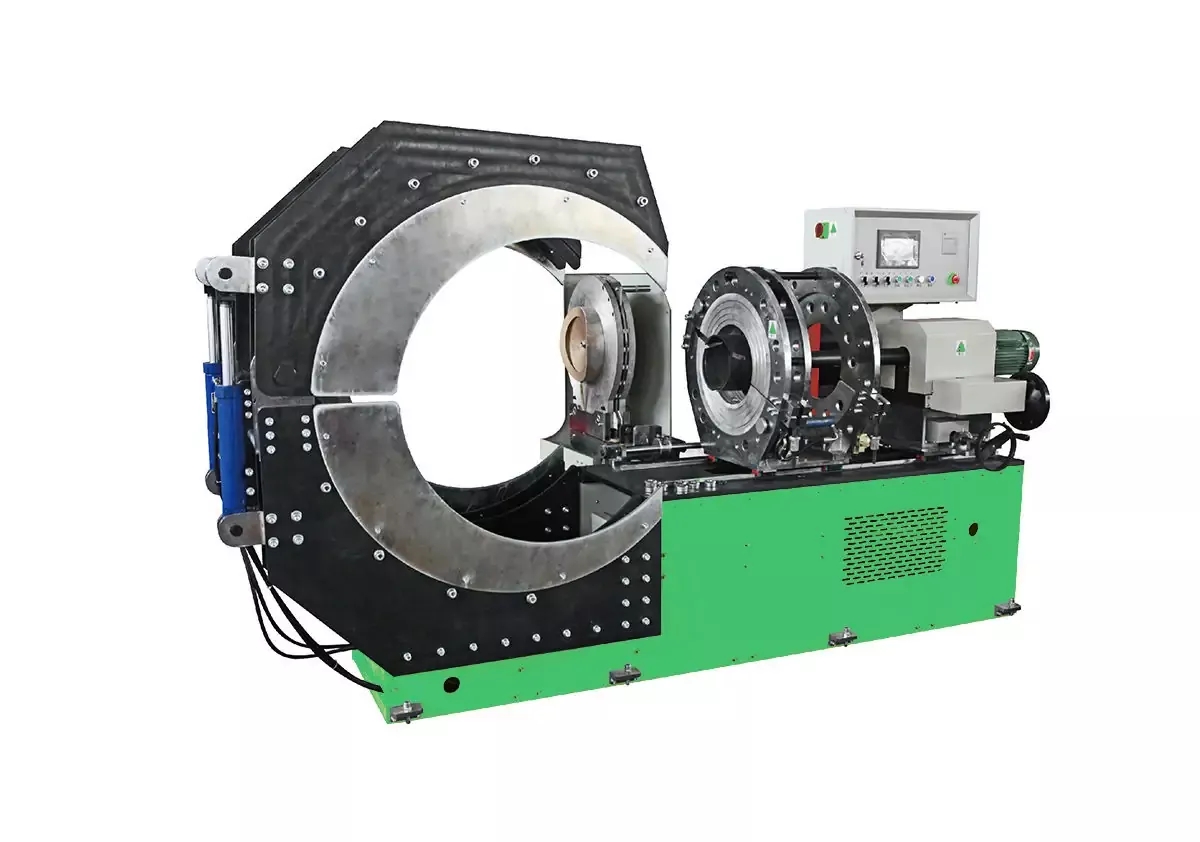

Model: SWT-S630/800/1000/1200

Features

The saddle pipe fusion machine has a removable PTFE coated heating plate.

It has a separate two-channel timer that records times in soaking and cooling phases.

The digital high-accurate pressure meter of the saddle pipe fusion machine indicates clearer readings.

The linear guide ways are equipped with a heating plate and dragging plate.

Applications

The saddle pipe fusion machine is used for fabricating PE reducing tee in a workshop.

The integrated function of welding and taping enables it to complete the whole fabricating process.

Technical Parameters of the Saddle Pipe Fusion Machine

Fitting type:Manhole

Main pipe max. dia.:630mm/800mm/1000mm/1200mm

Branch pipe max. dia.315mm/400mm/500mm/560mm

Ambient temperature:-5~45℃

Heating plant max. temp.:270℃

System pressure ranges:0-16Mpa

Working voltage:380V±10%, 50Hz

Heating plate power:8~12Kw

Hydraulic unit power:1.5Kw

Drill motor power:1.5~3Kw

Total power:11~16.5Kw

Weight:1900KG
