  • Saddle Pipe Fusion Welding Machine SWT-S630/315W

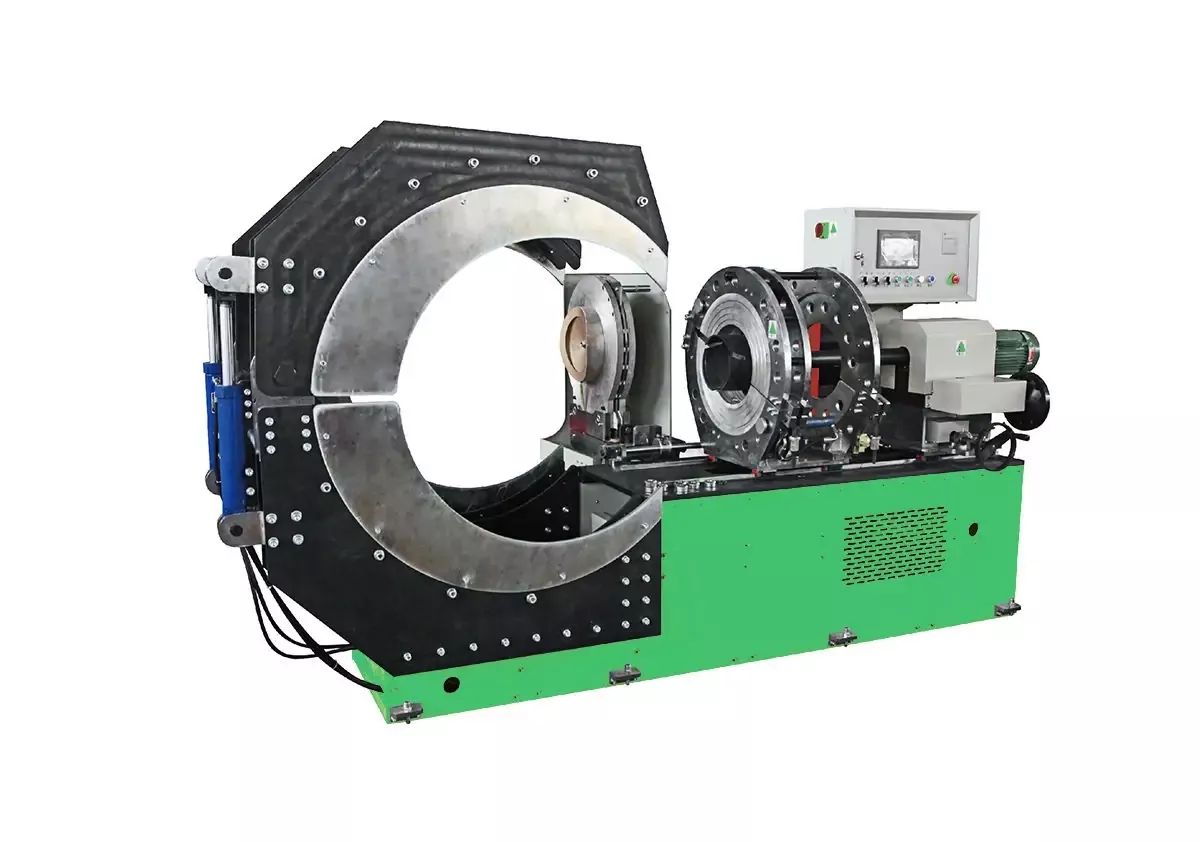

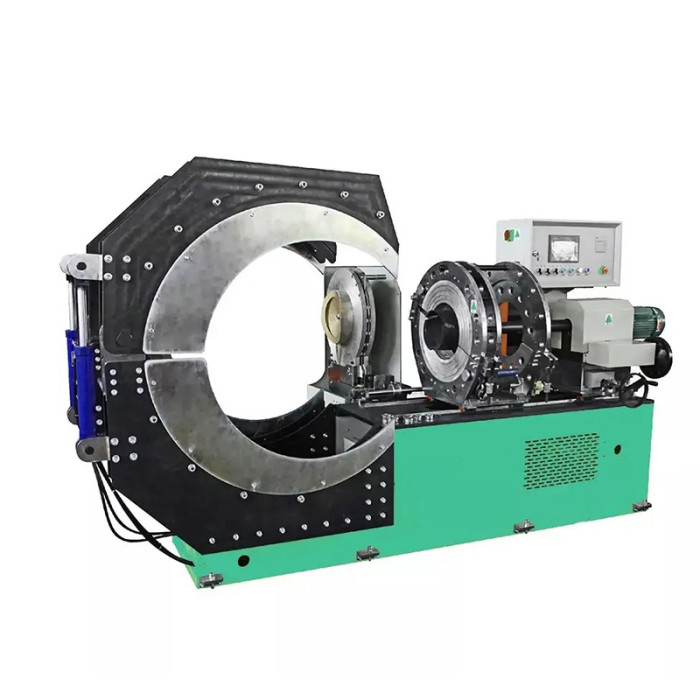

Saddle Pipe Fusion Welding Machine SWT-S630/315W

The saddle pipe fusion machine is used for fabricating PE reducing tee in a workshop.

The integrated function of welding and taping enables it to complete the whole fabricating process.

Technical Parameters of the Saddle Pipe Fusion Machine

Welding ranges:

Main pipes:315mm~630mm   Branch pipe:63mm~315mm

(Refer to detail Standard Configure Table)

Ranges of application: PE,PP and PVDF

Working voltage: ~380V ±10%,50Hz

Total power: 11KW, including:

Planing tool:1.5KW,

Heating plate:8 KW,

Hydraulic unit motor:1.5kW


  • Techincal Data

Model:SWT-S630/800/1000/1200 Plastic Pipe Saddle Fusion Welding Machine

Features

The saddle pipe fusion machine has a removable PTFE coated heating plate.

It has a separate two­channel timer that records times in soaking and cooling phases.

The digital high­accurate pressure meter of the saddle pipe fusion machine indicates

clearer readings.

The linear guide ways are equipped with a heating plate and dragging plate.

Applications

The saddle pipe fusion machine is used for fabricating PE reducing tee in a workshop.

The integrated function of welding and taping enables it to complete the whole fabricating process.

Technical Parameters of the Saddle Pipe Fusion Machine

Welding ranges:

Main pipes:315mm~630mm   Branch pipe:63mm~315mm

(Refer to detail Standard Configure Table)

Ranges of application: PE,PP and PVDF

Working voltage: ~380V ±10%,50Hz

Total power: 11KW, including:

Planing tool:1.5KW,

Heating plate:8 KW,

Hydraulic unit motor:1.5kW


PTFE coated hot module, adjustable knob for temperature control,

difference in heating plate surface temperature ≤±7°.

Environment temperature: -10° ~ 45°

Electronic count-down timer for heating and cooling time. PLC control system.

Whole machine consists of basic frame, heating plate, hot module, hole saws, planing tool, hydraulic unit and support.
