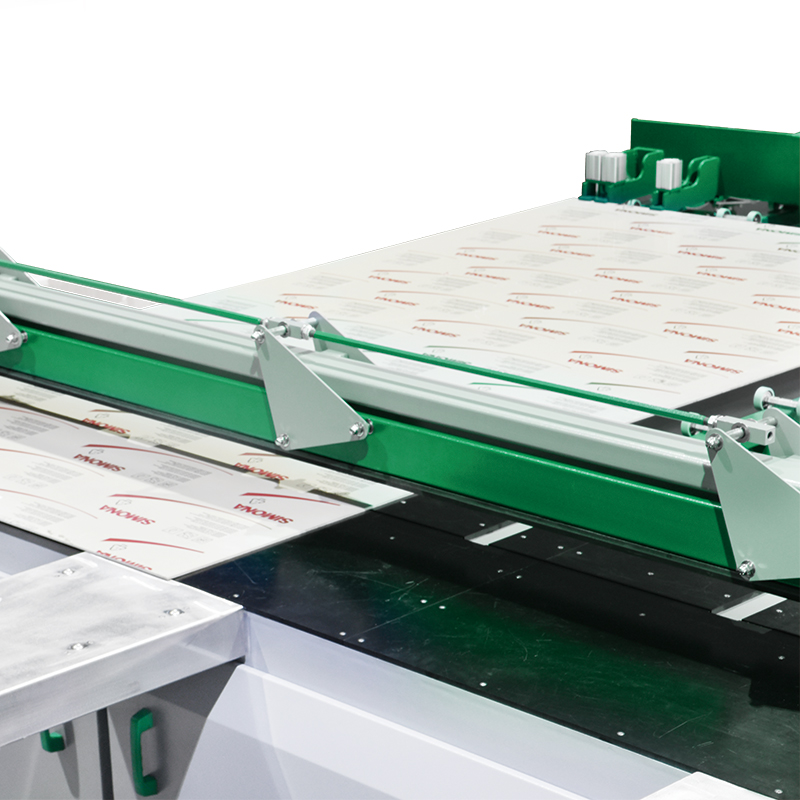

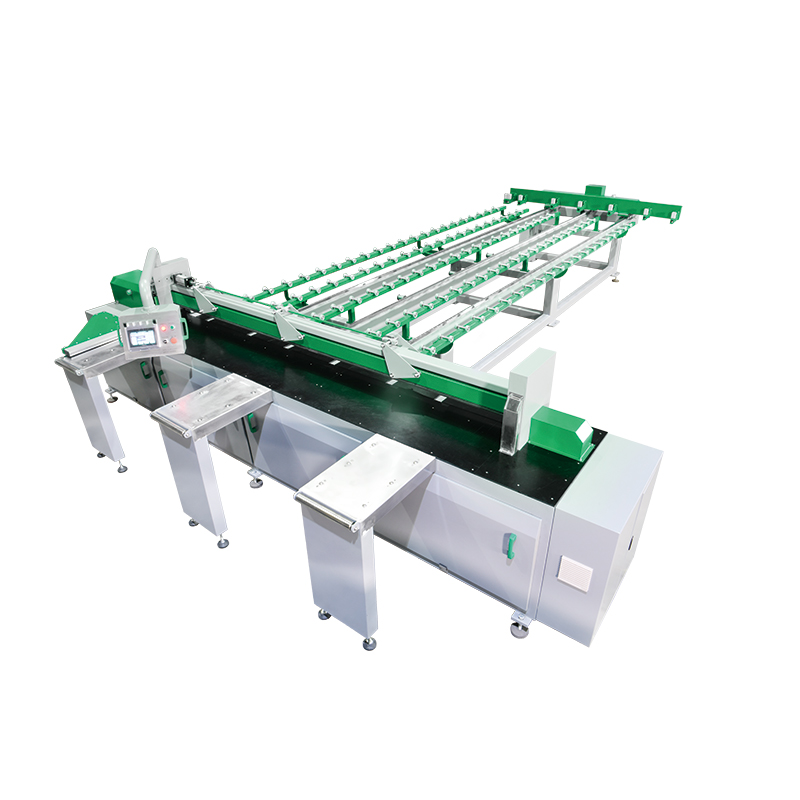

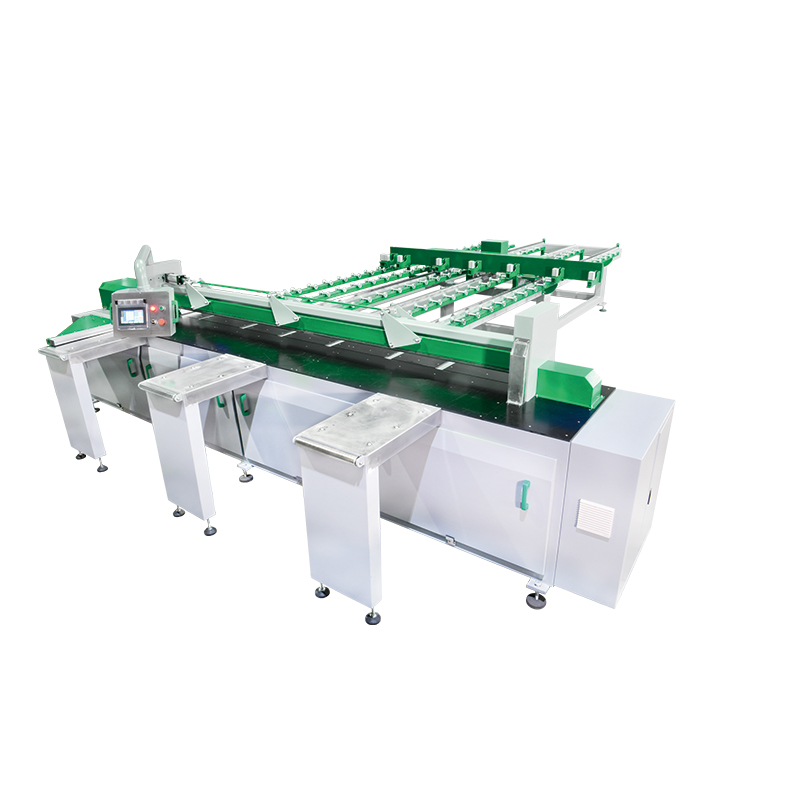

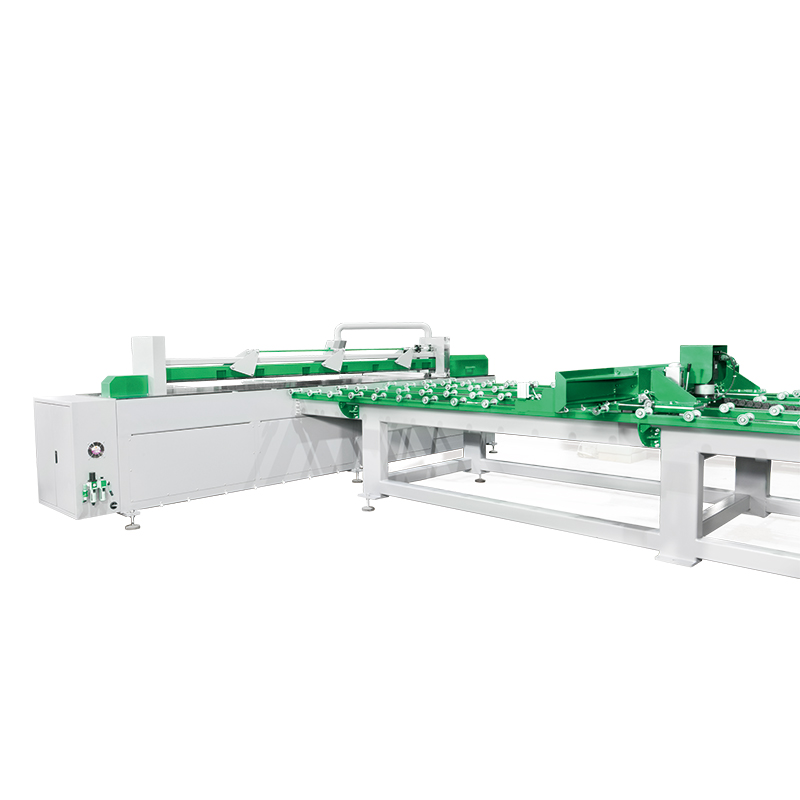

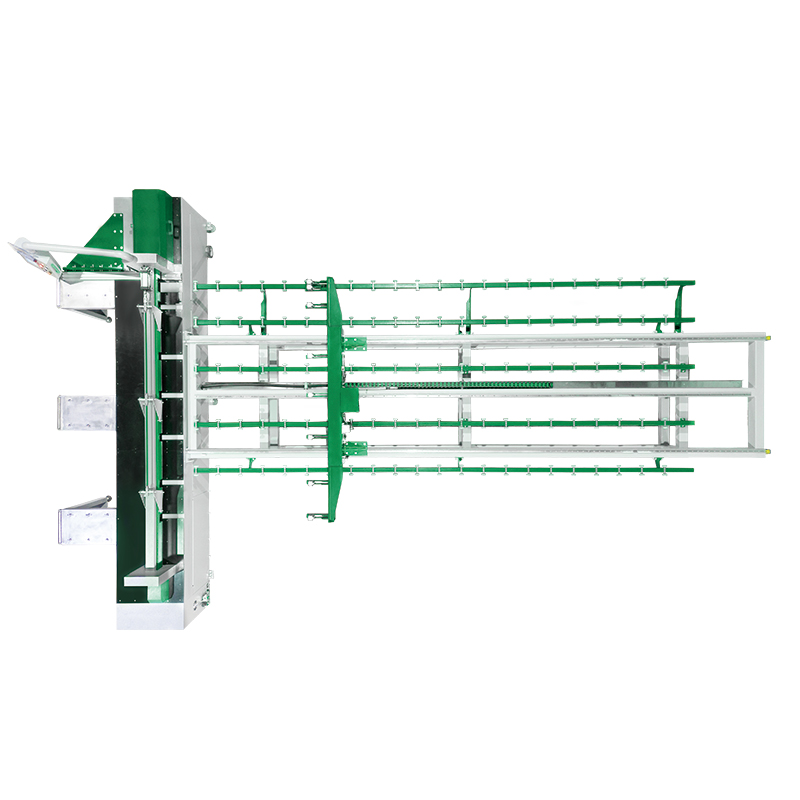

SEMI-AUTO SHEET SAW SWT-XL3000
SWT series Butt Fusion Welding Machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.
SWT-PH series Sheet Butt Fusion Welding Machine
SWT-ZW series Bending Welding Machine
SWT-PZ series All in one bending butt fusion welding machine
SWT-YF series Engraving machine
SWT-XL series Cutting Saw
| SPECIFICATIONS | |
| Sheet Saw Feeding sheet length: | 3050mm |
| Cutting Length: | 3050mm |
| Cutting Thickness: | 60mm |
| Main Motor Power: | 5.5HP |
| Saw size: | 305*25.4*100T |
| Spindle speed: | 4000rpm |
| Driver method: | frequency conversion adjustment |
| CNC feeding Brand: | Taida servo |
| Transmission method: | Precision oblique gear |
| Positioning accuracy: | ±0.1mm |
| Slideway on the feeding frame: | Japan (THK) |
| Pressing method: | pneumatic |
| Dust dusting method: | 3KW bag -type dust collector |
| Controller: | Siemens |
| Slideway: | Japan (THK) |
| Rated voltage: | 380V/50Hz AC power |
| Processing materials: | thermoplastic sheet |
| Dimensions: | 5250mm*5500*1650mm |
| N.W: | 1950kg |
SEMI-AUTO SHEET SAW SWT-XL3000
