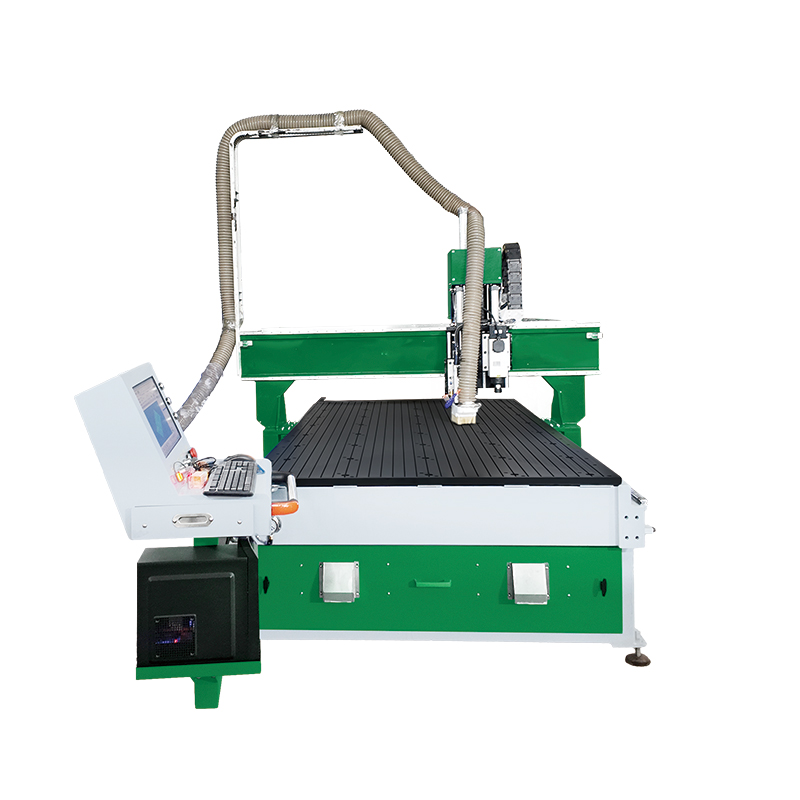

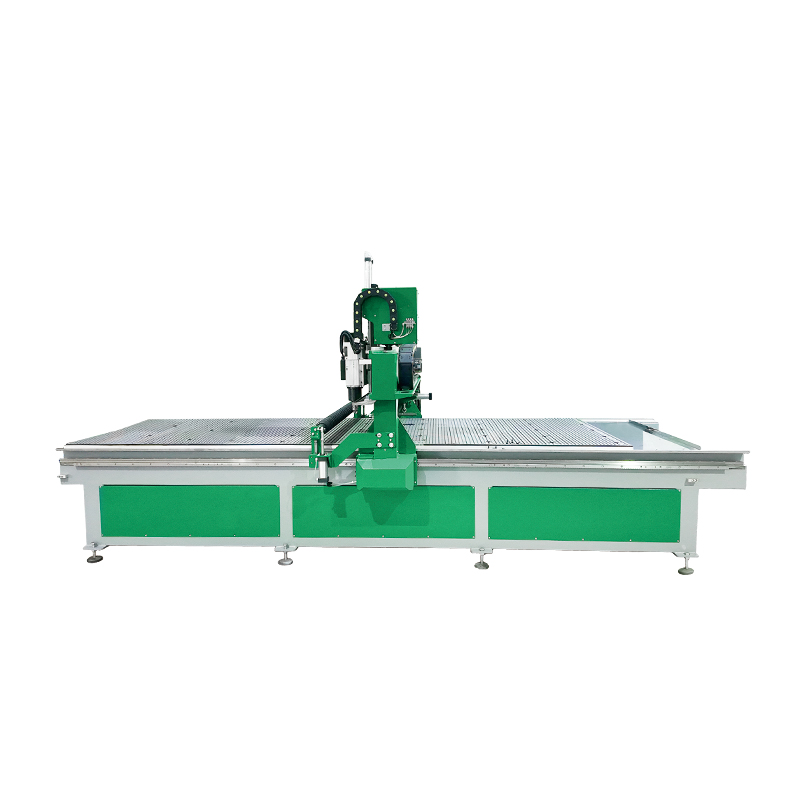

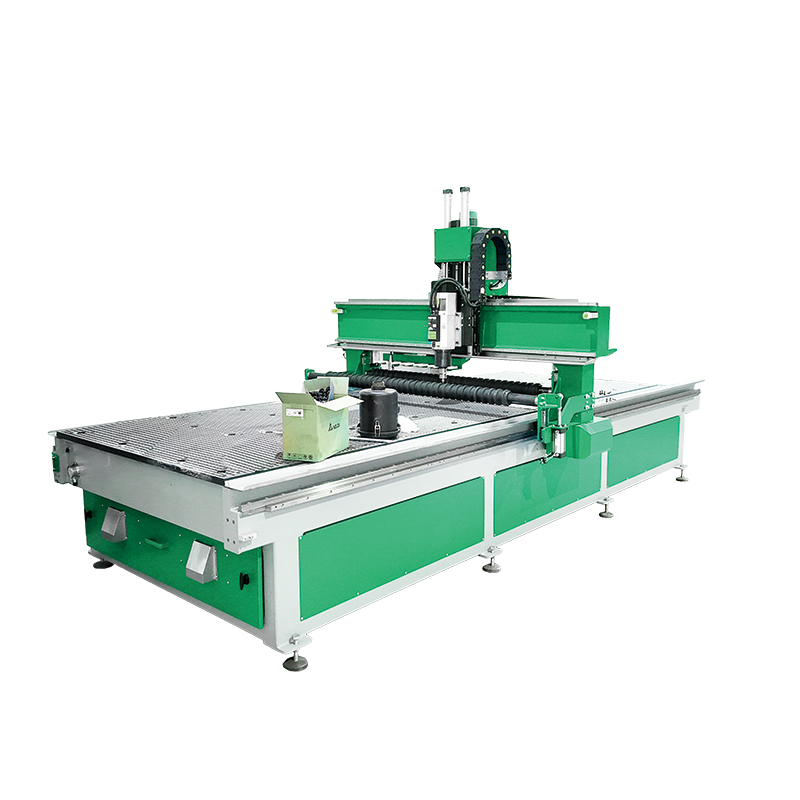

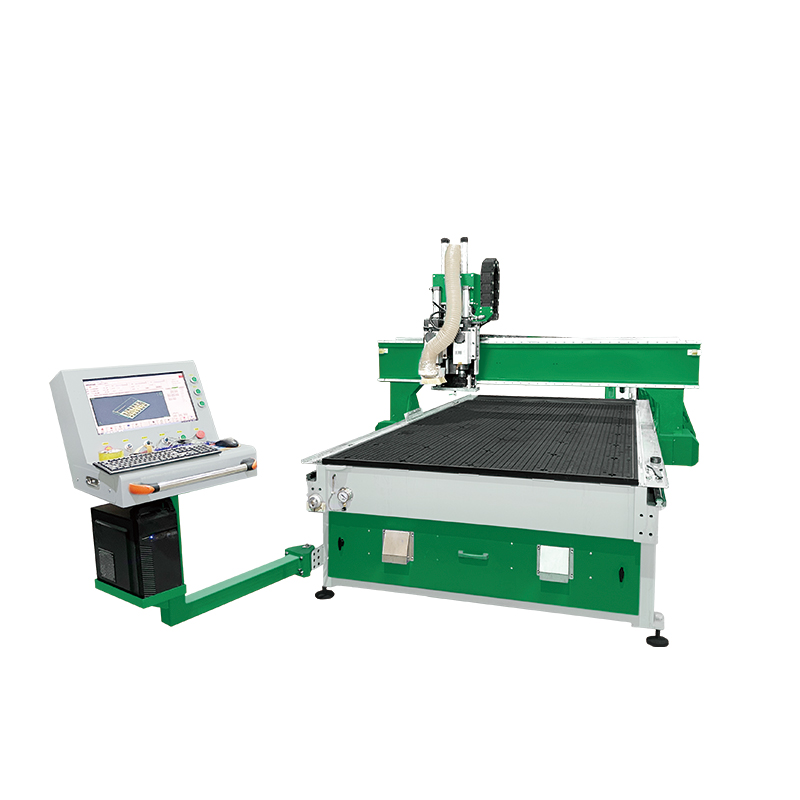

SWT-YF2040 Engraving Machine
SWT-YF series Engraving machine are suitable for welding thermoplastic sheets made of HDPE,PP,PVC,PVDF.
The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.
| SPECIFICATIONS | |
| X Y Z Working Area | 4000*2000*600mm |
| Supply Power | AC415/380V 3P 50/60Hz |

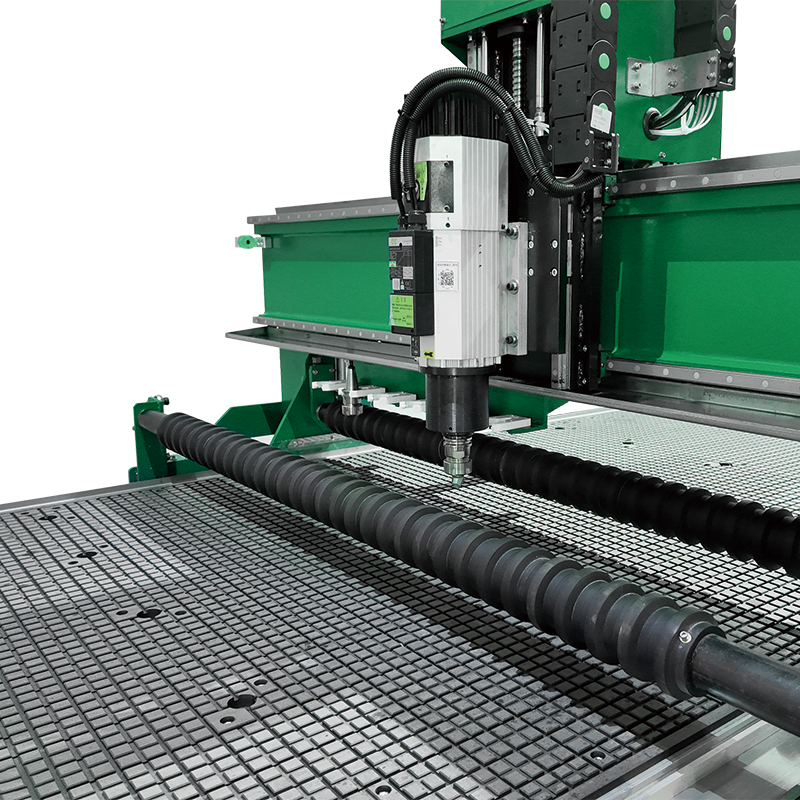

| Spindle | HQD 9KW air cooling |
| Countertop structure | Aluminum table with Pressure wheel/Vacuum table |
| Straight-line drill changing | 6 drill storage positions; Automatic change drill system |
| Maximum spindle speed | 0-18000rpm/min |
| Drive method | X/Y axis - precise 2M grinding helical rack; Z axis - Taiwan TBI grinding screw rod |
| Operating system | DSP A11E control system/PC-ArtCAM/VERCUT |
| Drive system | Delta |
| Machining accuracy | ±0.1mm |
| Repeat positioning accuracy | 0.02mm |
| Running speed | 40m/min |
| Slide track | AirTAC |
| Electric System | Schneider |
| Inverter | Delta |
| Pneumatic element | AirTAC |
| Servo reducer motor | Starbo Japan |
| Adsorption mode | Sliding-vane rotary vacuum pump |
| Dusting method | Vacuum collection device |
| Dimensions | 6200x3050x2000mm |
